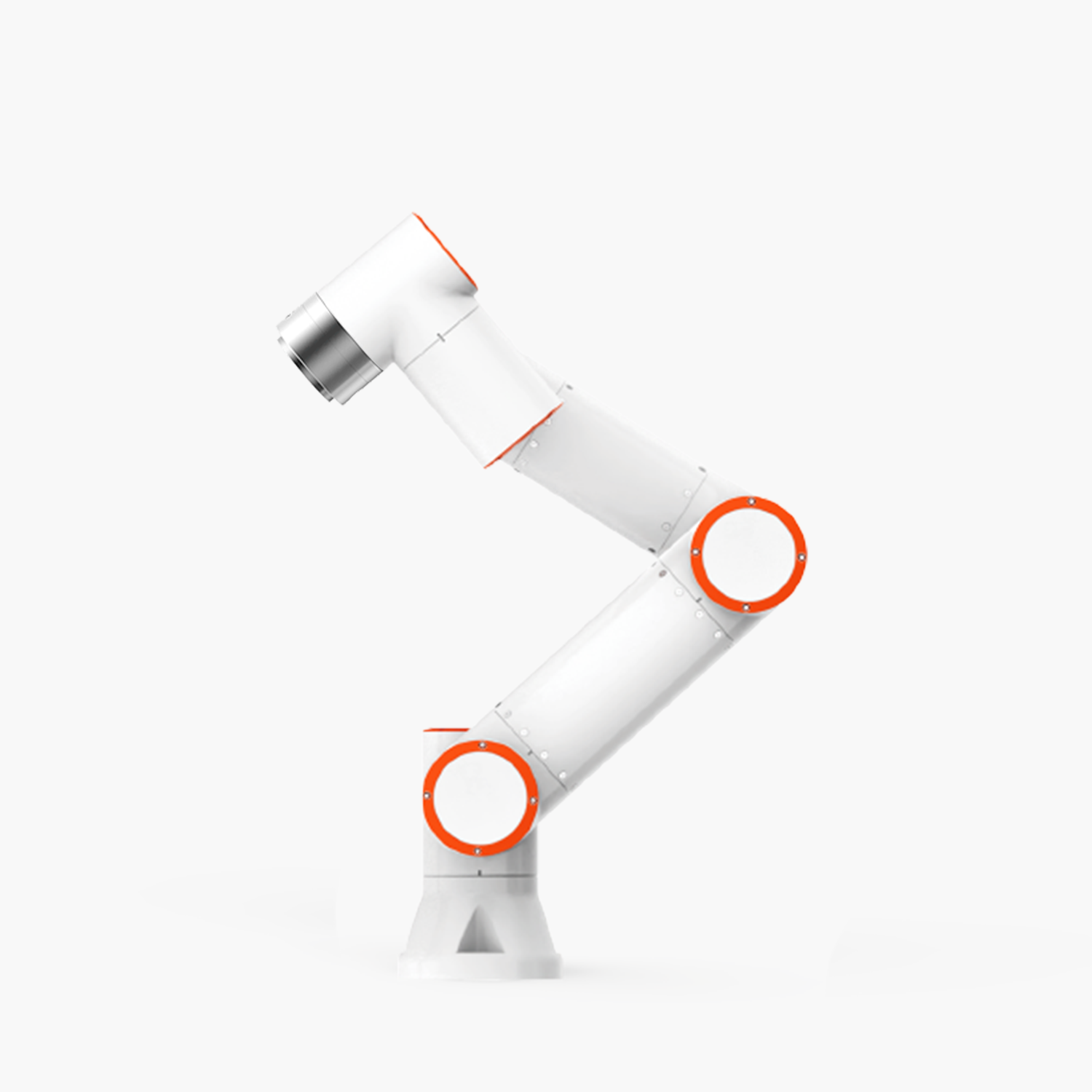

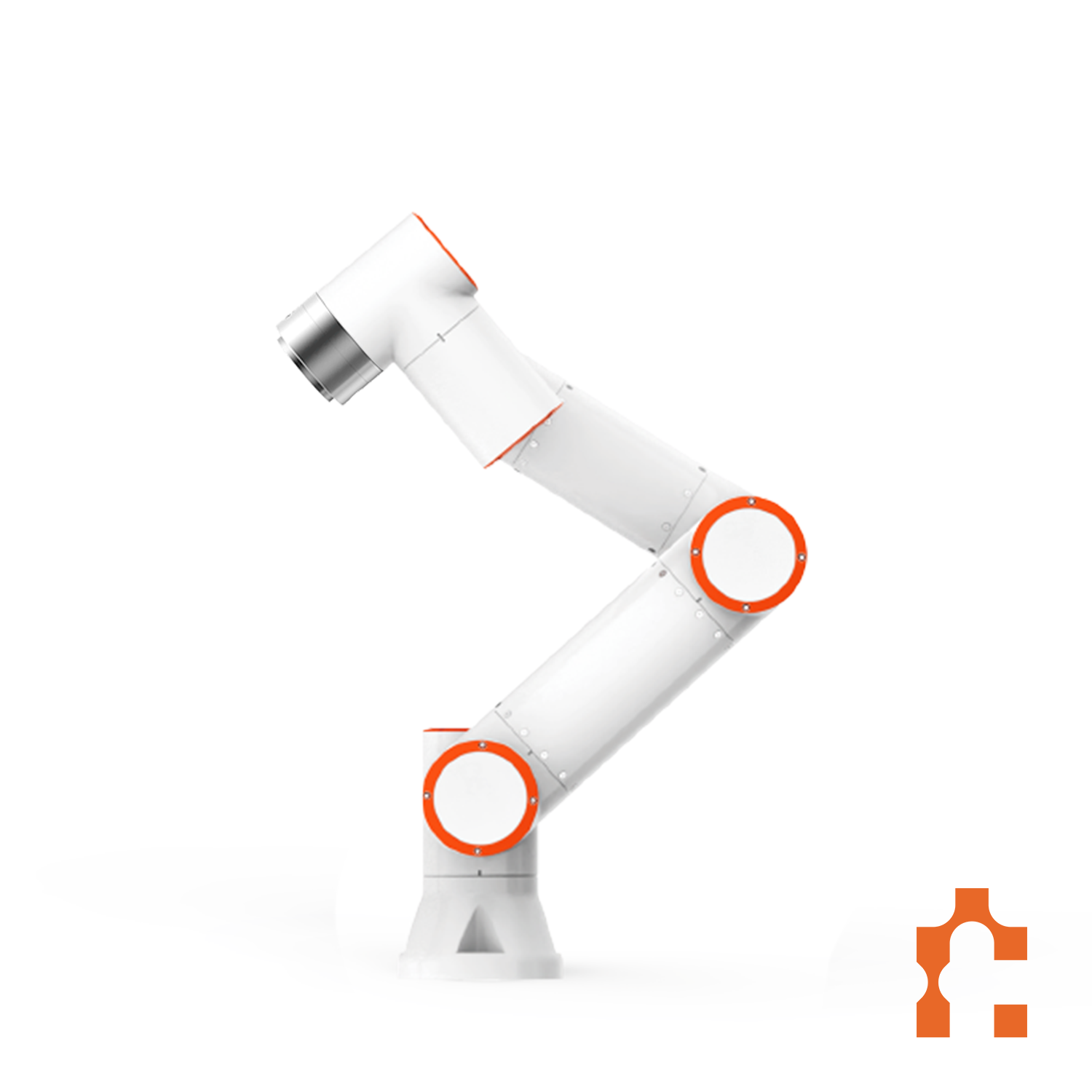

Fairino FR3-WMS

The FAIRINO FR3-WMS is a powerful 6-axis collaborative robot arm (cobot), designed for flexibility and ease of use. What makes this cobot special is its affordability, offering the same performance as competitors at a much lower price. The FR3-WMS can be easily programmed via an intuitive web interface without coding, for quick installation, or with advanced programming languages such as Python, C#, and C++ for more complex tasks. This makes the FR3-WMS suitable for a wide range of applications, from assembly to welding. Would you like to integrate the FR3-WMS into a complete solution? We can help with that; contact us to discuss the possibilities.

FR3 vs FR3-WMS:

The FR3-WMS combines mobility with maximum freedom of movement. Designed for welding tasks, it is lighter than the standard FR3 and therefore easy to move. With ±360° rotation on the 6th axis, it welds effortlessly around pipes and complex shapes. Even outdoor welding proves the FR3-WMS's strength in applications requiring extra rotational freedom.

Ordering:
Send the order via the website or send us an order/quotation request via: support@inluxrobotics.nl

Prices are excluding VAT:
0% VAT for companies in the EU, excluding the Netherlands, intra-community delivery.

Delivery time:
1-2 working days if in stock, 14-28 working days on order.

Specifications:
Payload: 3 kg
Reach: 622 mm
Accuracy: ±0.02 mm
Degrees of Freedom: 6
Axis 6 Limit: +360°, -360°
Maximum Angular Speed: 180°/s
Maximum TCP Speed: 1 m/s
IP Classification: IP54/IP65
Noise: <65dB
I/O Ports - On Controller (DI,DO,AI,AO): 16,16,2,2
I/O Ports - On Cobot Head (DI,DO,AI,AO): 2,2,1,1
Communication: I/O, TCP/IP, Modbus TCP/RTU, Profinet, EtherCAT, Ethernet/IP, CC-Link
Footprint: 128 mm
Weight: 10.5 kg
Operating Temperature: 0-45 degrees
Operating Humidity: 90% RH
Materials: Aluminium, Steel

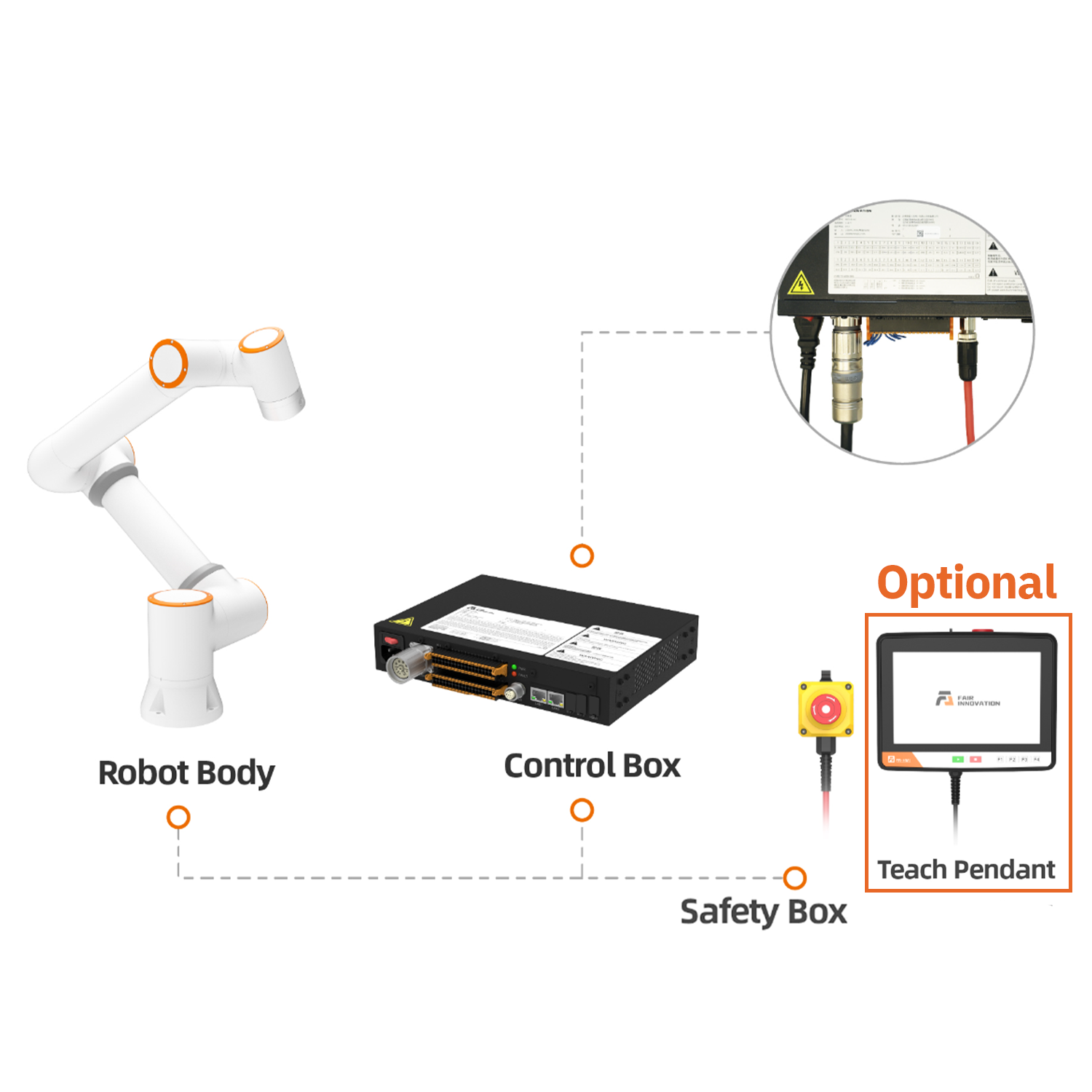

Included:
- Fairino FR3-WMS Cobot
- Control Box
- Safety Box
- EU Power Cable
