Cobot Vacuum Gripper Set - 230x120 - Schmalz

Cobot Vacuum Gripper Set - 230x120 - Schmalz

€2.799,00

Execution: Suction cups

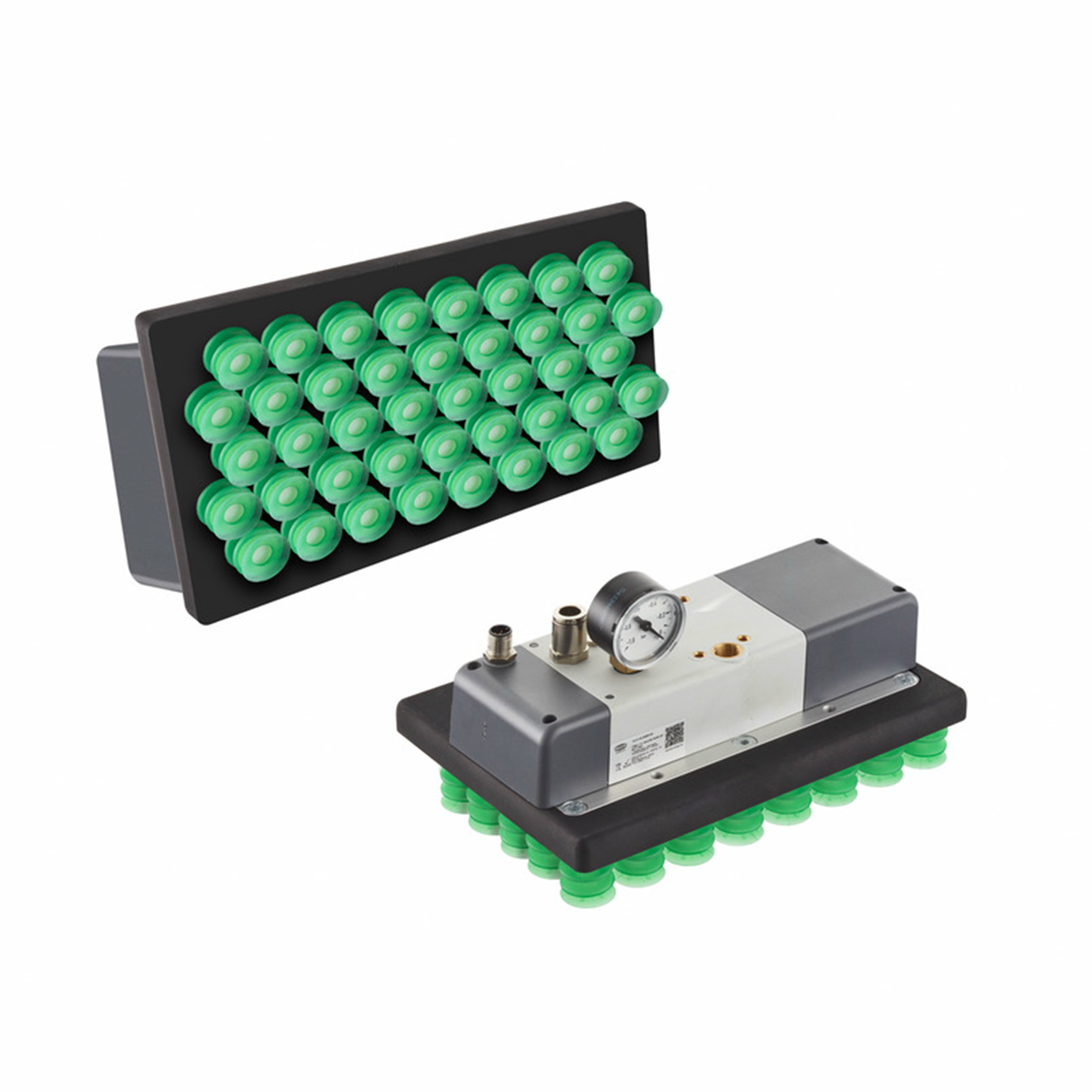

Suction cups

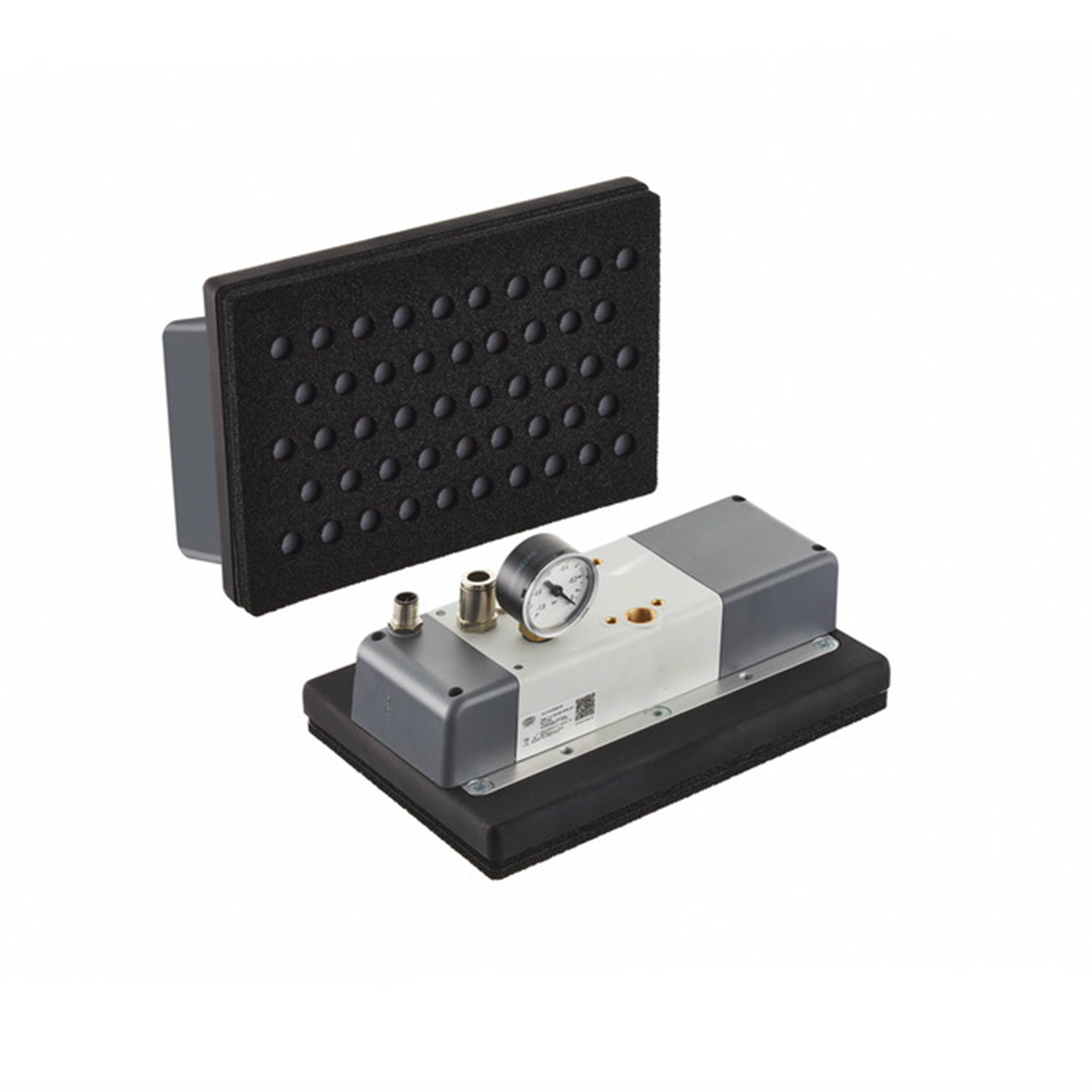

Foam

Product variants

Description

This plug and play vacuum gripper set is developed in collaboration with Schmalz, the market leader in vacuum technology. This gripper is ideal for picking up items such as boxes, a common application in palletizing.

The vacuum is generated directly in the gripper using compressed air, eliminating the need for external vacuum pumps. The on/off functionality is also integrated into the gripper, resulting in a compact and fully integrated system.

All necessary mounting materials and connectors are included. This vacuum gripper is fully compatible with Fairino Cobots and Universal Robots. Would you like to know if this gripper is also compatible with other brands? Please contact us.

Specifications & Included

Specifications:

Suction surface dimensions: 230 x 120mm
Maximum load capacity: 37 kg

Included:

Vacuum Gripper (230 x 120 mm)
Mounting Bracket
Connecting Cable
Air Tube
Pressure Reducing Valve
Main Valve

Downloads

230x120 - Schmalz - 2D Model

230x120 - Schmalz - STEP 3D Model

Would you like to order?

Order: You can place your order directly through our website or you can submit a request by contacting us.

Prices Excluding VAT: 0% VAT for companies in the EU, excluding the Netherlands, intra-community delivery.

Delivery Time: The delivery time depends on the item. If the item is in stock, it will be shipped within 1 to 2 business days.

Request Quote

FAQs

Check out our FAQs page for even more questions and answers.

Is an external compressed air connection required?

Yes, this model includes a vacuum generator that requires external compressed air.

How is the gripper controlled via Fairino?

The integrated valves are controlled via the I/O of the Fairino or UR cobot.

Can this gripper pick up objects without full contact?

Yes, the gripper automatically closes individual zones when not all suction cups make contact.

Can the gripper be mounted directly on the cobot?

Yes, the assembly is compatible with both Fairino and UR flanges. The flanges from Fairino and UR are actually the same.
