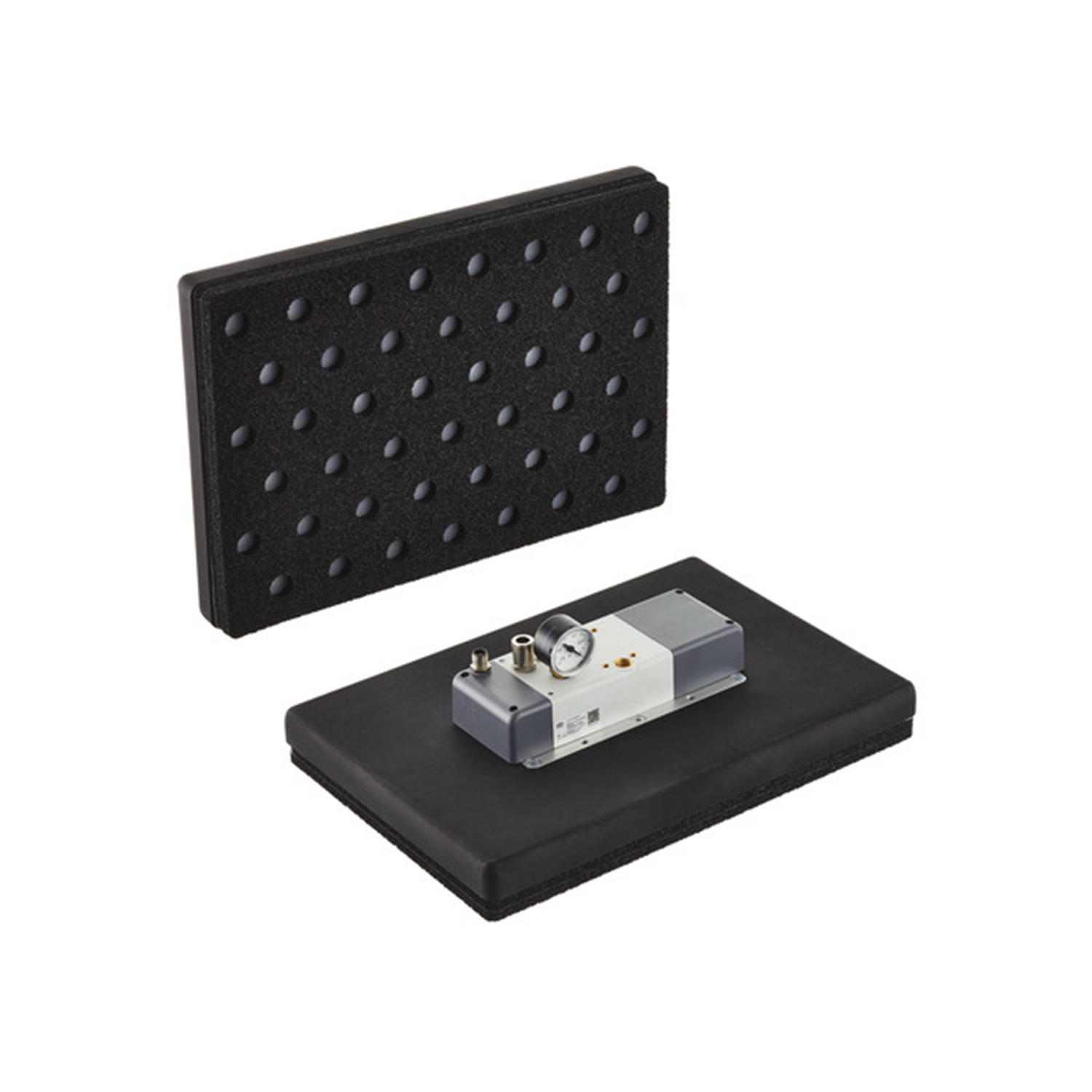

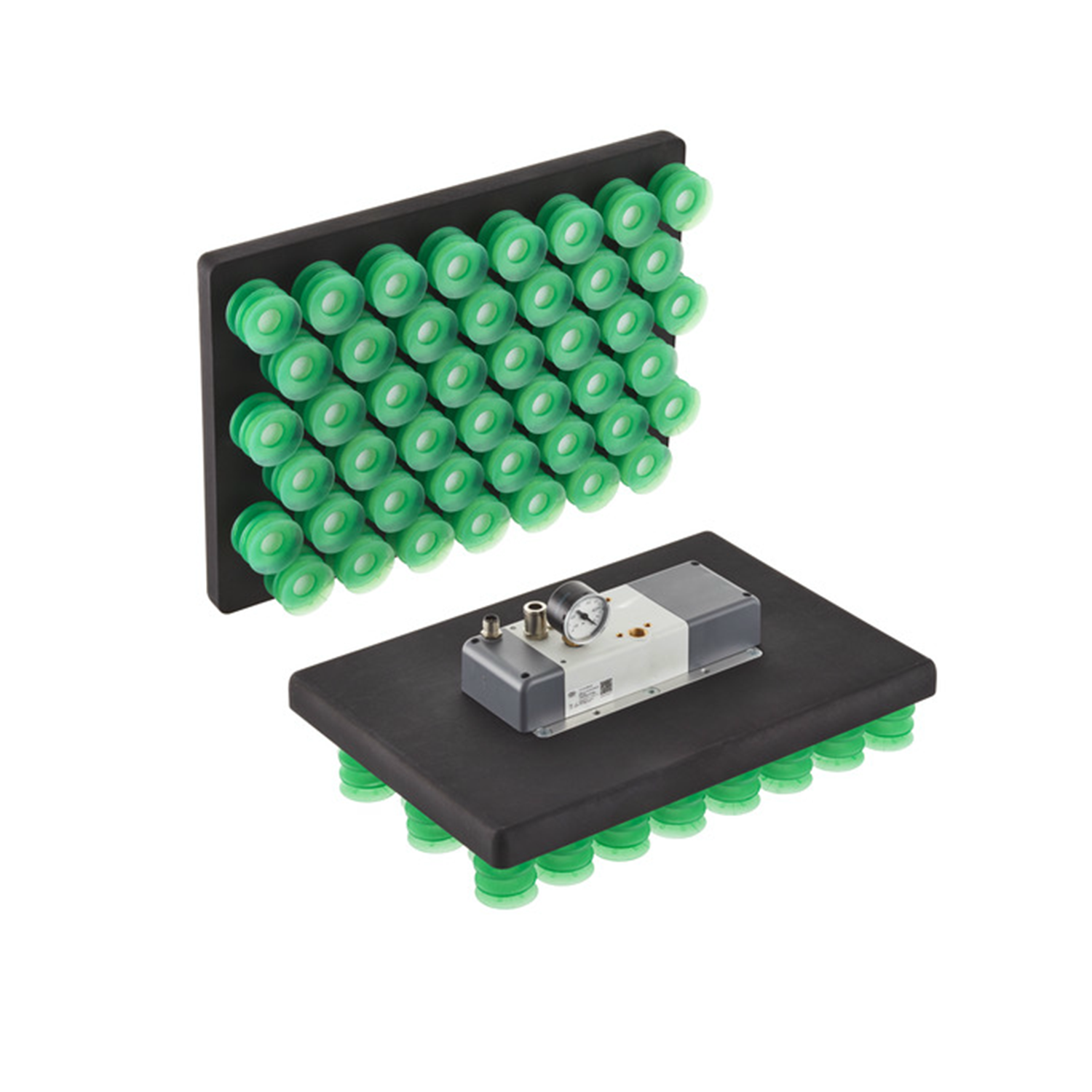

Cobot Vacuum Gripper Set - 400x280 - Schmalz

This plug and play vacuum gripper set has been put together in collaboration with Schmalz, market leader in vacuum technology. This gripper is ideal for picking up boxes, among other things, a common application in palletizing.

The vacuum is generated directly in the gripper using compressed air, making external vacuum pumps redundant. The on/off functionality is also integrated into the gripper, making for a compact and fully integrated system.

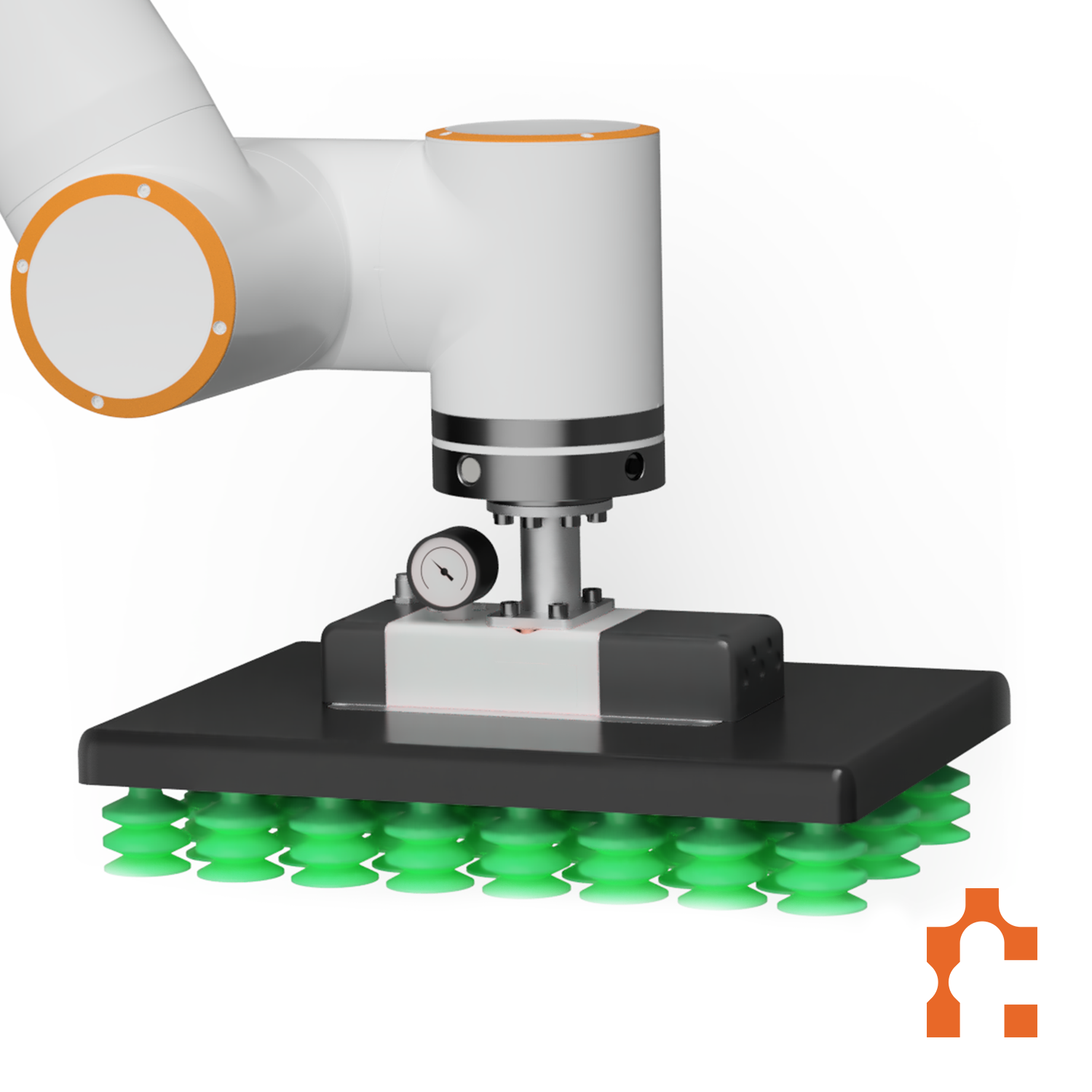

All necessary mounting materials and connectors are included. This vacuum gripper is fully compatible with Fairino Cobots and Universal Robots. Do you want to know if this gripper is also compatible with other brands? Please contact us.

Suction surface dimensions: 400 x 280mm
Maximum load capacity: 37 kg

Included:

• Vacuum gripper (400 x 280 mm)
• Mounting bracket
• Connection cable
• Compressed air hose
• Pressure reducing valve for pressure regulation
• Main valve
• Plug-in nipple (1/4 inch) for compressed air connection

Order:
Place the order via the website or send us an order/quotation request at: support@inluxrobotics.nl

Prices are exclusive of VAT:
0% VAT for companies in the EU, excluding the Netherlands, intra-Community delivery.

Delivery time:
1-2 business days in stock, on order 14-28 business days.
