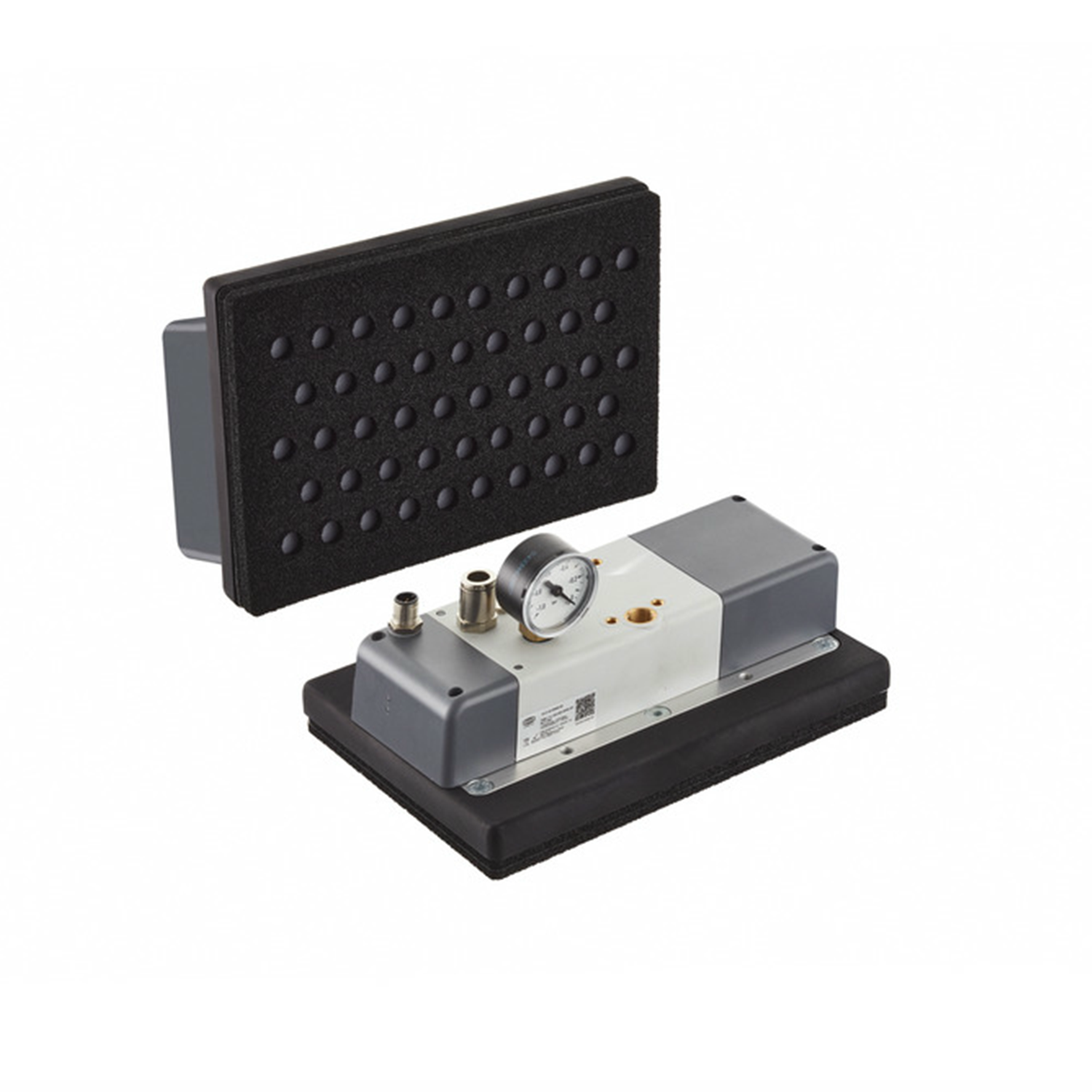

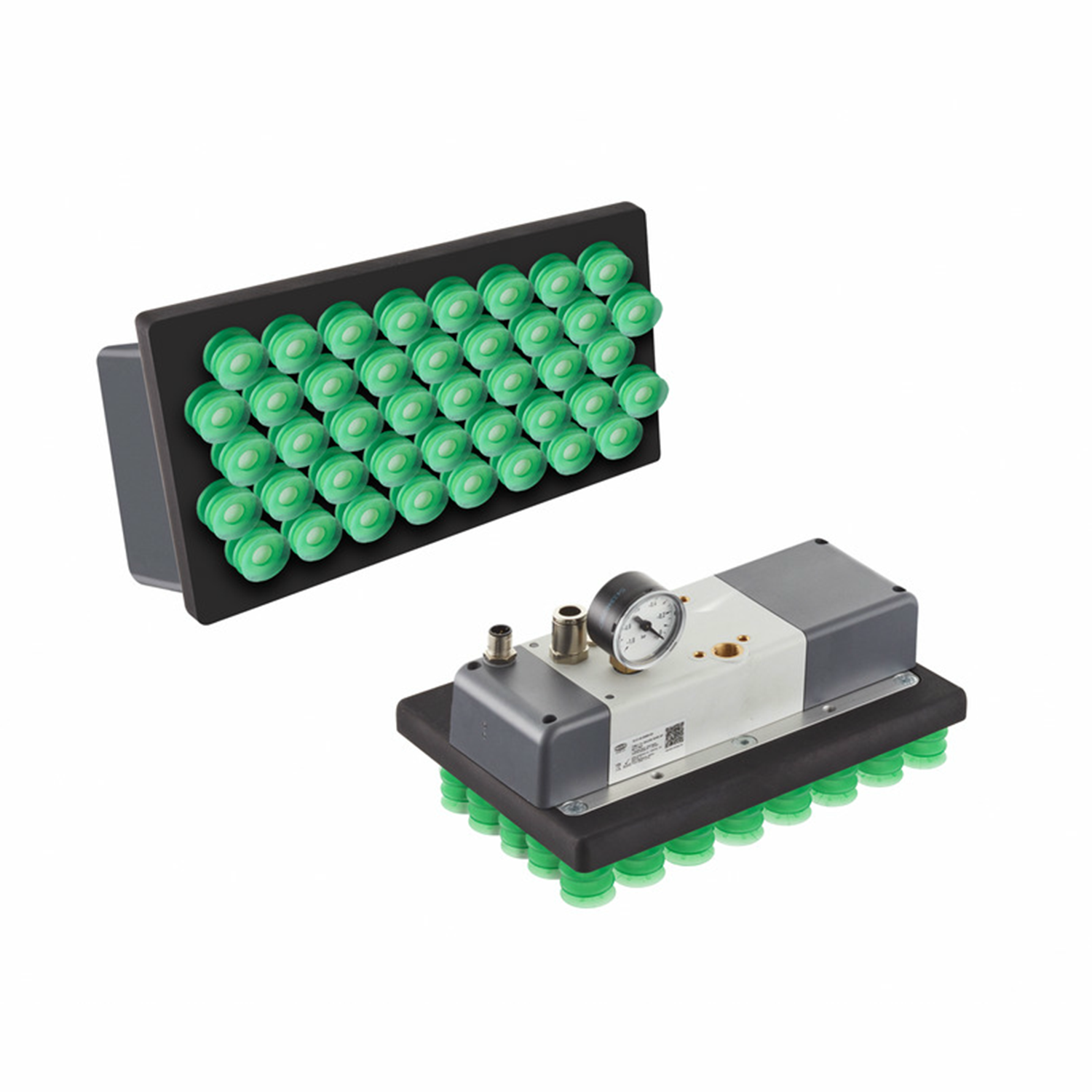

This plug and play vacuum gripper set is assembled in collaboration with Schmalz, market leader in vacuum technology. This gripper is ideal for picking up, among other things, boxes, a common application in palletizing.
The vacuum is generated directly in the gripper via compressed air, making external vacuum pumps unnecessary. The on/off functionality is also integrated into the gripper, resulting in a compact and fully integrated system.

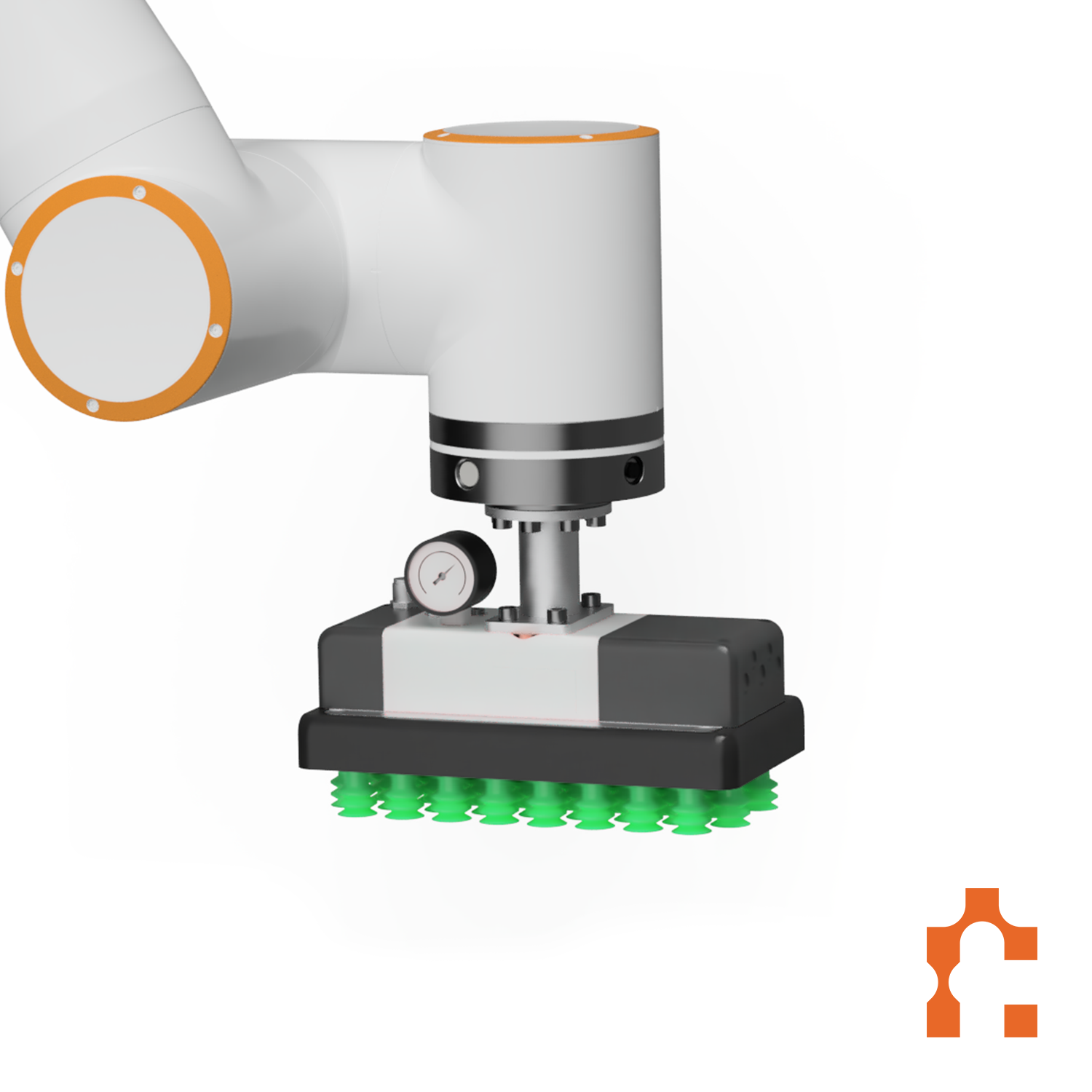

All necessary mounting materials and connectors are included. This vacuum gripper is fully compatible with Fairino Cobots and Universal Robots. Would you like to know if this gripper is also compatible with other brands? Please contact us.
Suction surface dimensions: 230 x 120mm Maximum load capacity: 37 Kg
Included:
Vacuum gripper (230 x 120 mm)
Mounting Bracket
Connection cable
Compressed air hose
Pressure reducing valve for pressure regulation
Main valve
Insert nipple (1/4 inch) for compressed air connection
Ordering: Send the order via the website or send us an order/quotation request via: support@inluxrobotics.nl
Prices exclude VAT: 0% VAT for companies in the EU, excluding the Netherlands, intra-community delivery.
Delivery time: The delivery time depends on the item. If the item is in stock, it will be shipped within 1 to 2 working days.
